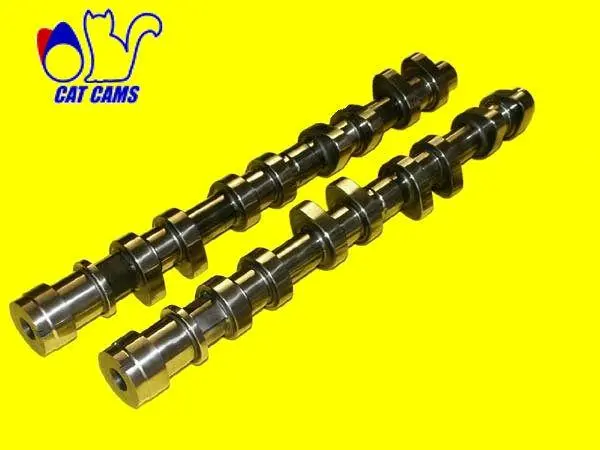

Cat Cams Performance Camshafts for Racing and Street Applications

Description

Only the finest high performance precision cams!!!  Please note, Cat cams are often made to order and are imported from Belgium.  Please expect anywhere from 3-6 week lead time.

05 Grind intake exhaust camshaft data: lash ramp: 0.25mm 0.30mm – duration @ 0.1mm: 273° 255° – duration @ 1.0mm: 232° 224° – valve lift: 9.30mm 9.30mm – cam lift: 9.30mm 9.30mm – lobe angle: 112° 112° – timing @ 1.0mm: 4° / 48° 44° / -0° – valve lift @ TDC: 1.65mm 1.25mm

08 Grind

intake exhaust camshaft data: lash ramp: 0.25mm 0.30mm – duration @ 0.1mm: 273° 255° – duration @ 1.0mm: 232° 224° – valve lift: 9.30mm 9.30mm – cam lift: 9.30mm 9.30mm – lobe angle: 112° 112° – timing @ 1.0mm: 4° / 48° 44° / -0° – valve lift @ TDC: 1.65mm 1.25mm

09 Grind

intake / exhaust camshaft data:lash ramp: 0.20mm0.25mm – duration @ 0.1mm: 280°273° – duration @ 1.0mm: 243°232° – valve lift: 9.75mm9.30mm – cam lift: 9.75mm9.30mm – lobe angle: 110° 106° – timing @ 1.0mm: 11° / 52°42° / 10° – valve lift @ TDC: 2.45mm 2.30mm

10 Grind – intake exhaust camshaft data :lash ramp: 0.30mm 0.35mm – duration @ 0.1mm: 255° 251° – duration @ 1.0mm: 224° 215° – valve lift: 9.30mm 8.90mm – cam lift: 9.30mm 8.90mm – lobe angle: 110° 106° – timing @ 1.0mm: 2° / 42° 33° / 2° – valve lift @ TDC: 1.50mm 1.50mm

11 Grind – Sport. intake/exhaust camshaft data: lash ramp: 0.25mm/0.25mmduration @ 0.1mm: 264°/262°duration @ 1.0mm: 231°/224°valve lift: 11.25mm/10.80mm cam lift: 11.25mm/10.80mm lobe angle: 145°/112° timing @ 1.0mm: -29° / 80°44° / -0°valve lift @ TDC: 0.25mm 1.20mm

12 Grind – Sport. intake/exhaust camshaft data: lash ramp: 0.25mm/0.25mmduration @ 0.1mm: 269°/260°duration @ 1.0mm: 236°/226°valve lift: 11.50mm/11.00mmcam lift: 11.50mm/11.00mm lobe angle: 145° /112° timing @ 1.0mm: -27° / 83°45° / 1°valve lift @ TDC: 0.25mm / 1.40mm

13 Grind – Hot Street Dirt Track. intake/exhaust camshaft data: lash ramp: 0.25mm/0.25mm duration @ 0.1mm: 274°/264°duration @ 1.0mm: 240°/231°valve lift: 11.75mm/11.25mm cam lift: 11.75mm/11.25mm lobe angle: 145°/112° timing @ 1.0mm: -25° / 85°48° / 3°valve lift @ TDC: 0.30mm / 1.65mm

14 Grind – hot street – dirt track. intake/exhaust camshaft data:lash ramp: 0.25mm/0.25mm duration @ 0.1mm: 277°/269° duration @ 1.0mm: 243°/236° valve lift: 12.00mm/11.50mm cam lift: 12.00mm/11.50mm lobe angle: 105°/105° timing @ 1.0mm: 17° / 46°43° / 13° valve lift @ TDC: 3.30mm/2.80mm

15 Grind – Tarmac Rally / Race. intake/exhaust camshaft data: lash ramp: 0.25mm/0.25mm duration @ 0.1mm: 285°/277°duration @ 1.0mm: 251°/243°valve lift: 12.50mm/12.00mm cam lift: 12.50mm/12.00mm lobe angle: 105° / 105° timing @ 1.0mm: 21° / 50°47° / 16° valve lift @ TDC: 3.80mm 3.30mm

16 Grind – Tarmac Rally / Race. intake/exhaust camshaft data: lash ramp: 0.25mm/0.25mm duration @ 0.1mm: 292°/285° duration @ 1.0mm: 258°/251°valve lift: 13.00mm/12.50mm cam lift: 13.00mm/12.50mm lobe angle: 105° / 105° timing @ 1.0mm: 24° / 54°51° / 20° valve lift @ TDC: 4.30mm 3.80mm

17 Grind – Turbo. intake/exhaust camshaft data: lash ramp: 0.25mm/0.25mmduration @ 0.1mm: 277°/262°duration @ 1.0mm: 243°/224°valve lift: 12.00mm/10.80mmcam lift: 12.00mm/10.80mmlobe angle: 110° 120° timing @ 1.0mm: 12° / 51°52° / -8°valve lift @ TDC: 2.65mm 0.60mm

39 Grind

intake / exhaust camshaft data:lash ramp: 0.25mm 0.25mm – duration @ 0.1mm: 277°269° – duration @ 1.0mm: 243°236° – valve lift: 12.00mm11.50mm – cam lift: 12.00mm11.50mm – lobe angle: 106° 106° – timing @ 1.0mm: 16° / 47°44° / 12° – valve lift @ TDC: 3.20mm 2.65mm

40 Grind

intake / exhaust camshaft data:lash ramp: 0.25mm 0.25mm – duration @ 0.1mm: 285°277° – duration @ 1.0mm: 252°243° – valve lift: 12.50mm12.00mm – cam lift: 12.50mm12.00mm – lobe angle: 106° 106° – timing @ 1.0mm: 20° / 52°48° / 15° – valve lift @ TDC: 3.70mm 3.15mm

41 Grind – intake exhaust camshaft data: lash ramp: 0.25mm 0.25mm – duration @ 0.1mm: 292° 285° – duration @ 1.0mm: 259° 252° – valve lift: 13.00mm 12.50mm – cam lift: 13.00mm 12.50mm – lobe angle: 106° 106° – timing @ 1.0mm: 24° / 55° 52° / 20° – valve lift @ TDC: 4.20mm 3.65mm

42 Grind intake / exhaust camshaft data: lash ramp: 0.25mm 0.25mm – duration @ 0.1mm: 307° 292° – duration @ 1.0mm: 268° 259° – valve lift: 13.50mm 13.00mm – cam lift: 13.50mm 13.00mm – lobe angle: 106° 106° – timing @ 1.0mm: 28° / 60° 56° / 23° – valve lift @ TDC: 4.70mm 4.15mm

313 Zetec Grind – Advertised Duration @ .1mm – 302 / 294 – Lift – 11.2mm / 10.8mm

314 Grind Zetec – Advertised Duration @ .1mm – 310/302 – Lift 11.65mm / 11.20 mm

317 Grind Zetec – Advertised Duration @ .1mm 286 / 278 Duratec – Lift 10.35mm / 9.95mm

324 Grind Zetec TURBO – Advertised Duration @ .1mm 256/262 – Lift 10.25mm / 9.05mm

312 Zetec Grind –

intakeexhaust
camshaft data:
lash ramp: 0.25mm0.25mmduration @ 0.1mm: 294°286°duration @ 1.0mm: 248°240°valve lift: 10.80mm10.35mmcam lift: 10.80mm10.35mmlobe angle: 108°108°timing @ 1.0mm: 16° / 52°48° / 12°valve lift @ TDC: 2.90mm2.50mm
