Description

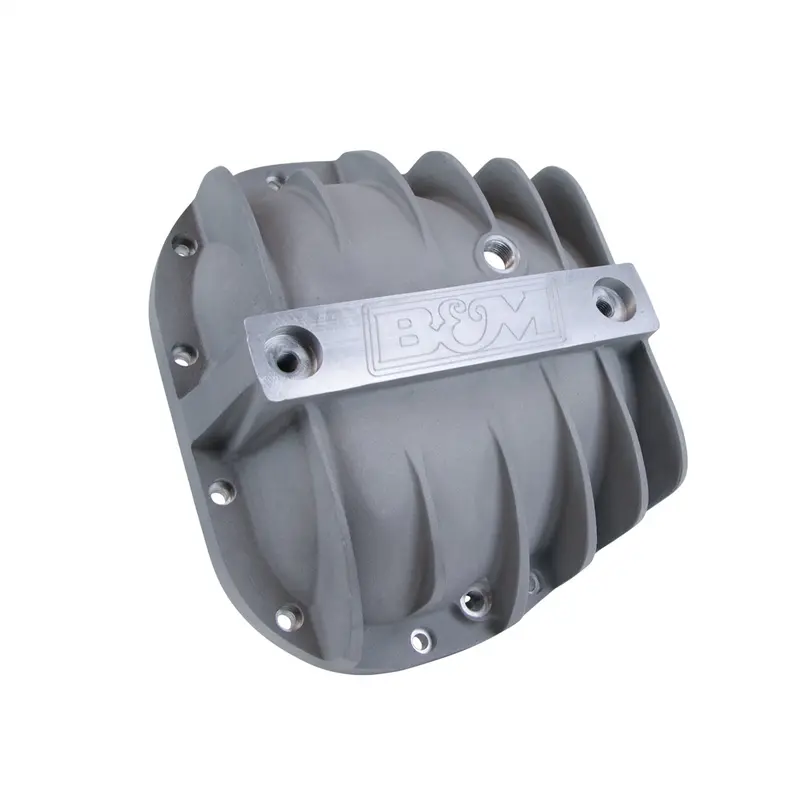

B&M Cast Aluminum Differential Covers are designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions.
Resources
Installation Instructions
Specifications:
| Bolt Pattern | Ford 9.750 in. |
| Bolt Quantity | 12 |
| California Proposition 65 Chemical Name 1 | Chromium (hexavalent compounds) |
| Call Out Size (in) | 3.28 |
| Carrier Main Cap Support | Yes |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | Designed to fit most vehicles with Ford 9.75in. differential; however each vehicle may have other interfering components and adequate clearance and fitment should be verified prior to purchase/installation. Refer to ID guide and measurement diagram for specific dimensions. Check clearances for fit-Gasket Not Included. |
| Description_DEF | Differential Cover |
| Description_DES | Differential Cover |
| Description_EXT | Differential Cover; For Use w/Ford 9.75 in.; Incl. Cover/Fill And Drain Plugs/Bolts/Washers/Load Bolts/Nuts; |
| Description_FAB | Additional Oil Capacity |
| Description_FAB | Built-In Drain Plugs |
| Description_FAB | Cast Aluminum |
| Description_FAB | More Cooling Ability |
| Description_FAB | No Dipstick Modification |
| Description_FAB | Some Include Fluid Pickup Extension |
| Description_INV | 2010-2022 DIFF COVER FORD 9.75in. |
| Description_KEY | 40298; differential cover; aluminum cover; rear end cover; cubierta diferencial; cubierta de aluminio; cubierta de extreme posterior |
| Description_LAB | Made In Logo |
| Description_MKT | B&M Cast Aluminum Differential Covers are designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions. |
| Description_MKT | Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, natural finish, machined B&M logo, and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. Refer to ID guide and measurement diagram for specifications. |
| Description_SHO | Differential Cover |
| Drain Plug Included | Yes |
| Filler Plug Included | Yes |
| finish | Raw Aluminum |
| Gasket Or Seal Included | No |
| height | 6.0 |
| length | 14.75 |
| LTL | N |
| Material | A356.0-T6 Aluminum |
| Package Contents | Aluminum cover, fill & drain plugs, bolts & washers, load bolts & nuts, warranty |
| Position | N/A |
| Thickness | 3.840 in. |
| Title | B&M 40298 Cast Aluminum Differential Cover for Ford 9.75″ |
| WARNING CA Proposition 65 | No |
| weight | 11.74 |
| width | 14.4 |
